What Is Embedded GUI PC Simulation?

Embedded GUI PC simulation is the practice of compiling and running your embedded display application on a Windows desktop machine — using the exact same C source code that will ultimately execute on the target MCU or MPU — to validate screen layouts, state machine flows, animations, and data binding before any hardware is available.

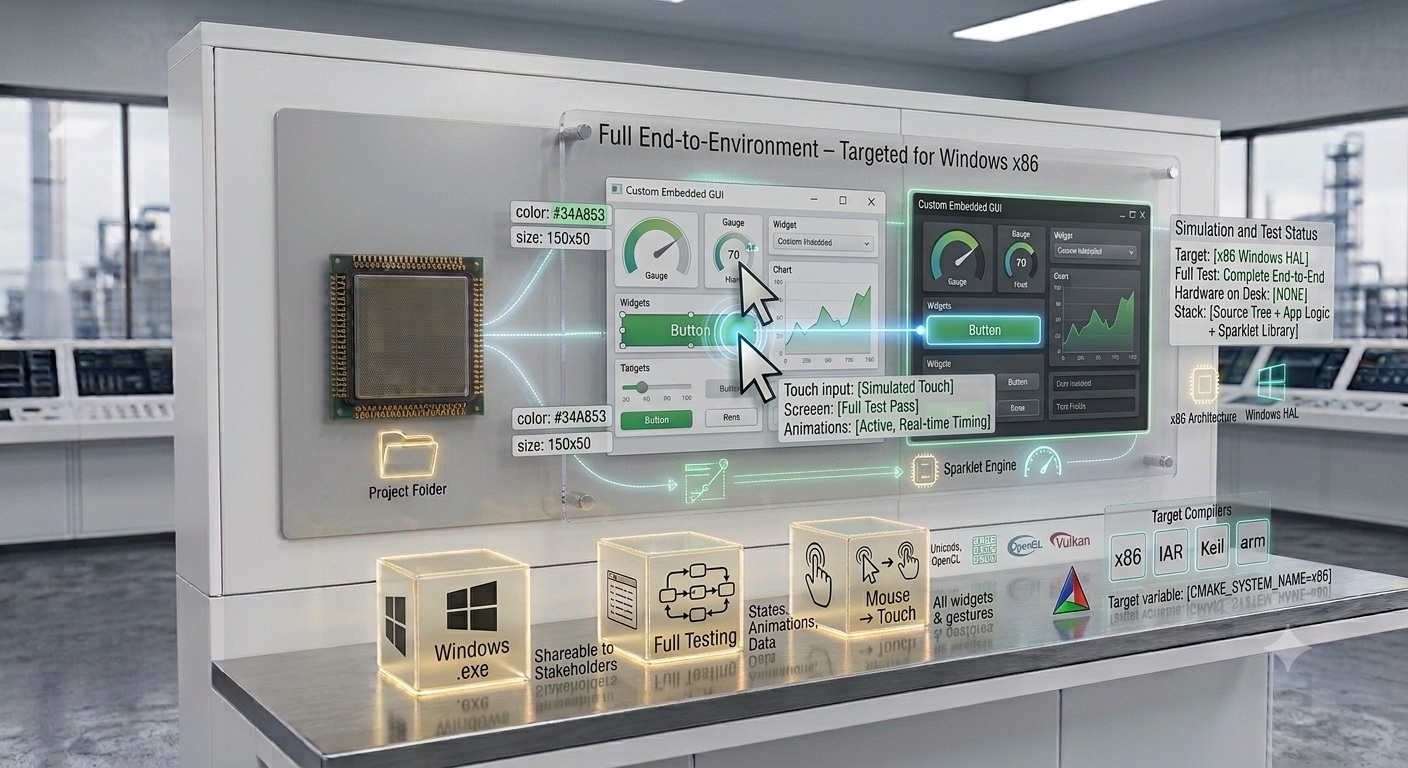

Sparklet's PC simulator is not a mock-up viewer or a design preview tool. It is a full build of the Flint-generated screen code, the Sparklet widget library, and all application logic, compiled against a Windows x86 HAL that maps touch input to mouse clicks and display output to a native window. If a screen works correctly in the simulator, it will behave identically on target hardware — because the code is identical.

This page explains the two simulation modes available in Sparklet, the debug features the simulator provides, what the simulator cannot substitute for, and how it integrates into a team development workflow. See also: code generation, state machine editor, and performance benchmarks.

Two Simulation Modes

In-designer preview for instant feedback. Windows simulator build for full application testing. Both run the exact same Sparklet C code.

Instant Visual Feedback While You Design

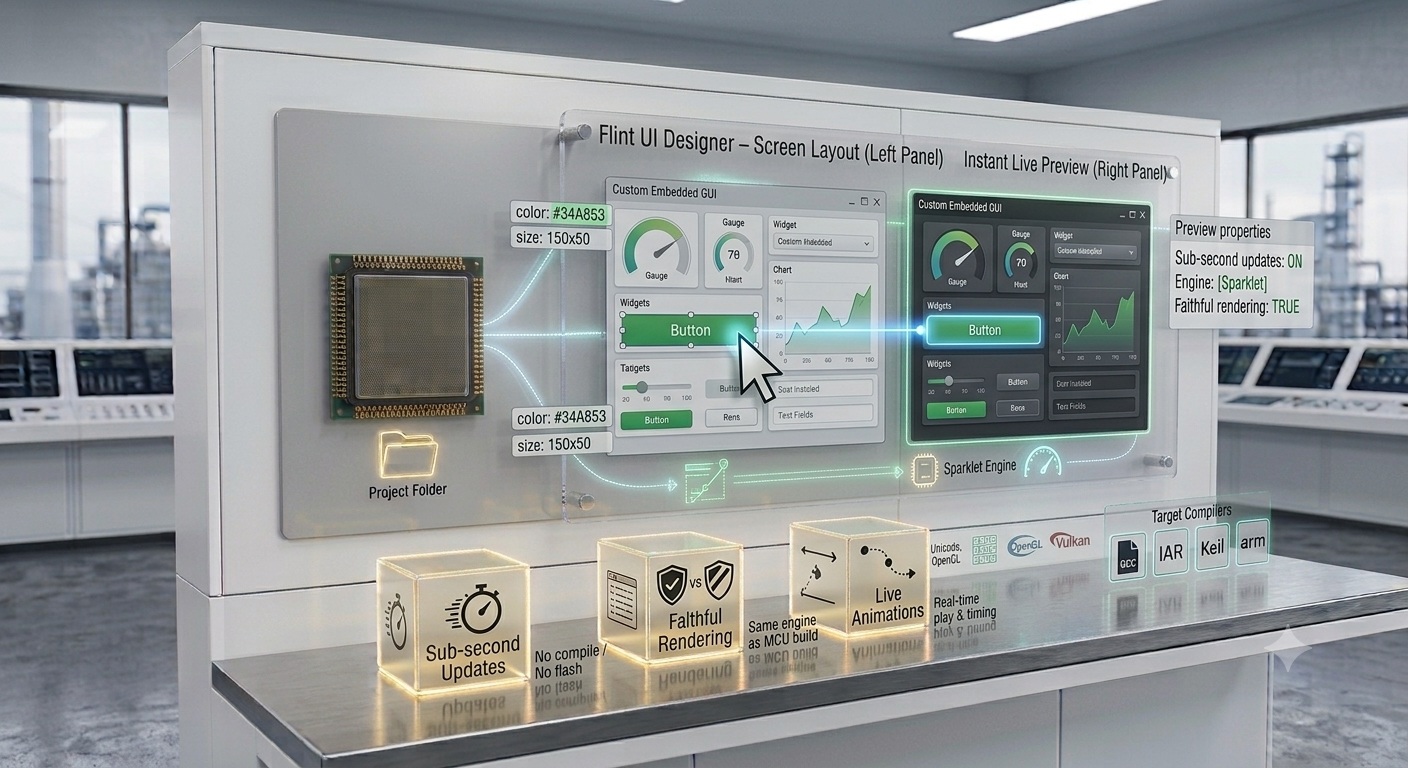

While designing screens in Flint UI Designer, a live preview panel reflects every change in real time. Add a widget, resize it, change a colour, adjust a layout — the preview updates immediately, with no compile step. The feedback loop between changing a property and seeing the result is sub-second.

The in-designer preview renders using the same Sparklet rendering engine as the target build, so colour blending, alpha transparency, font rendering, and animation timing are all faithful to what will appear on the embedded display. There is no separate "preview renderer" — the exact same Sparklet library is used throughout.

Sub-second update cycle — no compile, no flash
Faithful rendering: same engine as MCU build
Animations and transitions play in real time
Ideal for rapid visual iteration and layout refinement

Why PC Simulation Accelerates Embedded GUI Projects

Faster iteration. Changing a UI element on an MCU build requires editing source, recompiling, flashing, and power-cycling — a cycle that takes minutes per iteration on most embedded targets. On the PC simulator, the same change is visible in seconds. For a project with dozens of screens and hundreds of UI refinements, the cumulative time saving across the project is significant.

No hardware dependency for early development. UI work can begin the day the project starts, even if target hardware is still in board bring-up or procurement. A team can design, implement, and validate the entire UI layer on the simulator while hardware engineers finish the BSP. Both streams converge at integration, with the UI already proven.

Stakeholder collaboration without development tools. A Windows simulator build is a standard .exe that any team member or stakeholder — product manager, industrial designer, customer — can run on their laptop without any development tools or embedded hardware. Feedback on UI flows, wording, and layout is collected from people who would never interact with embedded development hardware.

Integration and regression testing. Test scripts can inject data values and trigger events programmatically against the simulator build, automating testing of all state machine paths. Automated regression testing on the simulator catches UI regressions before they reach hardware, where debugging is slower and more constrained. See the state machine editor page for HSM testing patterns.

Debug Overlays

Three Debug Tools Built Into the Simulator

The Sparklet simulator build includes three debug overlays that are not present in production firmware builds and incur zero overhead on target hardware.

Event Log

A live scrolling panel records every widget event (touch press, release, value change), every state machine transition, and every screen navigation event — with timestamps. Trace unexpected behaviour or missed state transitions without a hardware debugger.

Widget Inspector

Hovering over any widget displays its ID, type, current state (normal / pressed / disabled / focused), and dirty/redraw status. Instantly confirm that a widget is in the expected state when debugging event handling or visual update issues.

Performance Overlay

Displays frame render time (ms), total widget count per screen, and dirty region count per frame. A useful guide to rendering complexity — note that values reflect PC performance, not MCU performance (see limitations below).

PC Simulator vs Real Hardware — What Transfers, What Differs

Aspect	PC Simulator	Real Hardware	Impact
Widget logic & state machines	Identical C code	Identical C code	None — fully portable
Screen layout & animations	Pixel-accurate	Pixel-accurate	None
CPU/frame performance	Multi-GHz x86 — very fast	168–600 MHz Cortex-M/A	Validate on hardware early
Display colour accuracy	PC monitor profile	TFT/AMOLED panel	Calibrate on target panel
Touch latency & feel	Mouse — negligible latency	Touch controller firmware	Test swipe/inertia on hardware
RAM/Flash consumption	Unlimited (x86)	Constrained (16–512 KB)	Check vs /performance targets
Shareable to stakeholders	Yes — standard .exe	No — needs dev hardware	Simulator ideal for reviews
Automated regression tests	Yes — headless, CI-ready	Limited without hardware CI	Simulator handles most cases

Simulator Benefits for Development Teams

Four ways the Sparklet PC simulator accelerates the path from first screen to hardware validation.

Exact C Code — No Divergence

The simulator runs the identical Flint-generated C source as the MCU build. No separate preview engine, no diverging code paths. What passes in the simulator runs on hardware.

Start Before Hardware Arrives

Begin UI design, implementation, and validation on the simulator while board bring-up proceeds in parallel. Eliminate the hardware-wait bottleneck from your project timeline.

Stakeholder Demos Without a Lab

Send the .exe to any stakeholder. They run the full UI on their laptop — no tools, no hardware. Collect feedback from product managers, designers, and customers before prototype hardware exists.

Automated Regression in CI Pipelines

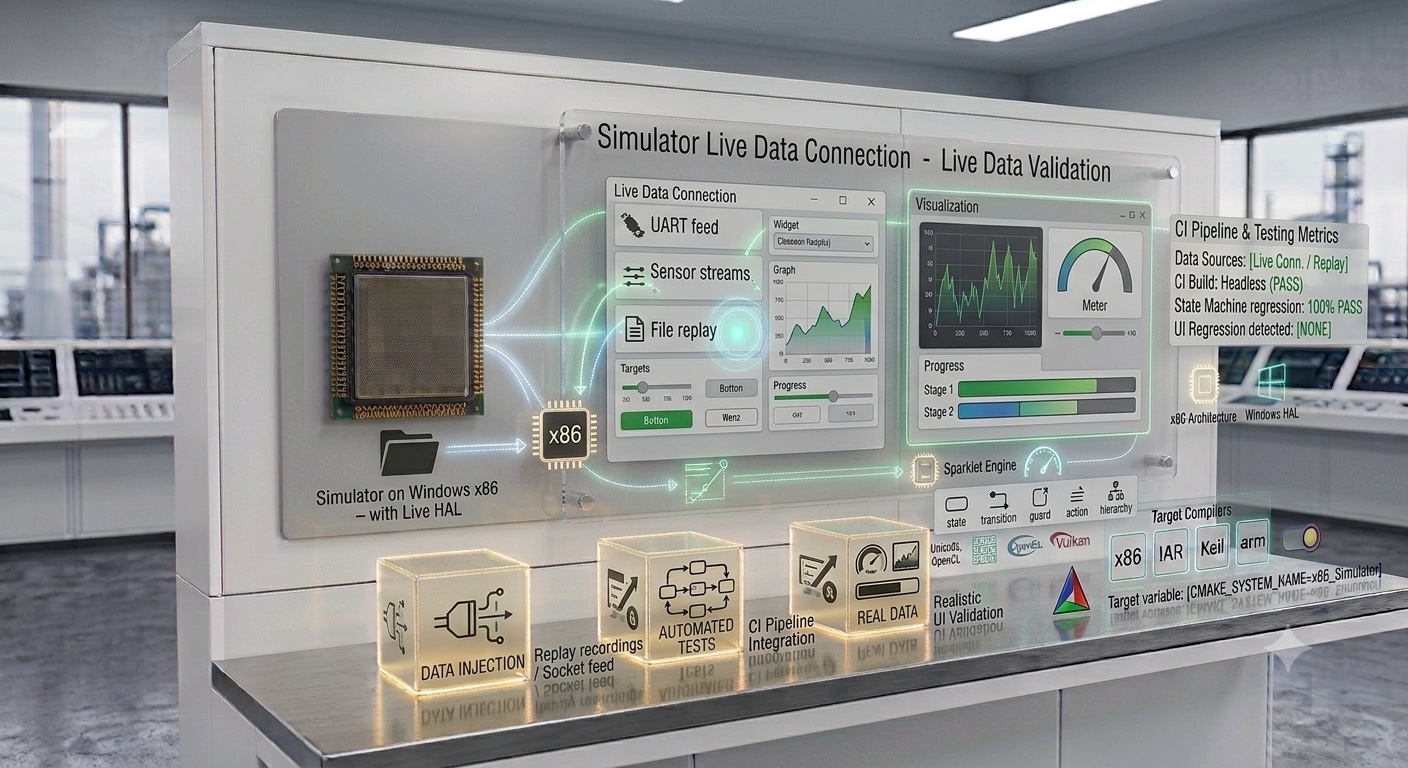

The headless simulator mode runs on Windows build servers. Inject events programmatically to test every state machine path. Catch UI regressions automatically on every commit.

What the PC Simulator Does Not Replace

The simulator is a powerful tool for UI logic testing, but there are things it intentionally does not model. Understanding these limits prevents misplaced confidence during hardware bring-up.

Target hardware performance. The Windows simulator runs on a multi-GHz x86 processor with gigabytes of RAM. A 200 MHz Cortex-M7 with 512 KB of RAM is a very different execution environment. Frame rate figures seen in the simulator are not representative of MCU frame rates. Use the Performance & Memory benchmarks as a guide and validate frame rates on hardware as early as possible.

Display colour accuracy. A PC monitor renders colours differently from an embedded TFT or AMOLED panel, particularly at the colour depths (16-bit, 8-bit) common on low-cost MCU displays. Colour calibration and brand colour accuracy must be confirmed on the actual display hardware.

Touch latency and gesture feel. Mouse input via the simulator has different latency and gesture physics than a touch panel with its own controller and firmware. Swipe inertia, tap responsiveness, and multi-touch behaviour should all be validated on hardware with the actual touch controller integrated.

The recommended workflow is: use the simulator extensively for UI logic, state machine validation, and screen layout iteration; move to hardware as soon as BSP bring-up is complete for performance, display colour, and touch validation. The code generation pipeline makes switching between simulator and hardware builds a single-variable change in the build system.

FAQs: Embedded GUI PC Simulation

Is the PC simulator running the same code as the MCU?

Yes. The simulator compiles the exact same Flint-generated C source files and Sparklet library code as the MCU target build. The only difference is the HAL layer, which on Windows maps display output to a native window and mouse input to touch events. All widget logic, state machine behaviour, animations, and data binding are identical between simulator and hardware builds.

Can I demo an embedded GUI to stakeholders without hardware?

What debugging features does the Sparklet simulator provide?

How accurate is the PC simulator compared to real hardware?

Can non-engineers run the Sparklet simulator?

Can I use the simulator for automated regression testing?

Simulate Your Embedded GUI on a Windows PC
