Enabling Smart Display Experiences with Sparklet on Rockchip Platforms

In today's connected world, a simple, static screen is no longer enough. From the crisp, data-rich dashboard in a modern car to the intuitive touchscreen on a smart refrigerator, the demand for high-performance smart display systems has exploded. Users now expect rich graphics, fluid animations, and zero-lag responsiveness—experiences once exclusive to high-end smartphones.

For embedded developers and product engineers, this presents a significant challenge: how to deliver a premium visual experience on hardware that must be cost-effective, power-efficient, and reliable.

This is where the powerful combination of a lightweight graphics library and a robust System-on-a-Chip (SoC) becomes critical. Enter Sparklet, a high-performance embedded graphics library meticulously designed to create scalable, beautiful, and responsive Graphical User Interfaces (GUIs) with a minimal footprint.

When paired with the versatile and cost-efficient Rockchip platforms (like the popular RK series), Sparklet unlocks the full potential of your hardware, enabling you to build sophisticated HMI and display-driven applications that stand out.

Deep Integration: Sparklet Meets Rockchip Hardware

The true power of Sparklet on Rockchip platforms doesn't come from just running on the OS; it comes from deep, "metal-level" integration with the hardware itself. Rockchip SoCs, from the cost-effective RK3308 to the powerful RK3588, are renowned for their multimedia and graphics capabilities, often featuring one or more Mali GPUs.

Sparklet is engineered to leverage this hardware directly, ensuring maximum performance.

Hardware-Accelerated Rendering

Sparklet's rendering engine is not a simple software-based painter. It’s a sophisticated graphics pipeline that offloads the heavy lifting to Rockchip's onboard GPU.

1. OpenGL ES Support: For complex 3D elements, dynamic visual effects, and shader-based animations, Sparklet hooks directly into the OpenGL ES API. This allows the Rockchip Mali GPU to manage vertex processing, texturing, and fragment shading, resulting in fluid, high-frame-rate graphics that would be impossible to achieve with CPU-based rendering alone.
2. 2D Graphics Pipelines: For many HMI applications, a 2D-centric approach is more efficient. Sparklet intelligently utilizes Rockchip's 2D hardware accelerators (if available) for operations like blitting, scaling, and alpha blending. This frees up the 3D core of the GPU and the main CPU for other tasks.

Efficient Frame Buffer Management

A stuttering display is the hallmark of a poorly integrated system. Sparklet ensures a tear-free, smooth visual experience by taking precise control of the frame buffer. It seamlessly integrates with the Rockchip display controller (like the VOP, or Video Output Processor), implementing double or triple buffering. This means the next frame is always being prepared in a background buffer while the current one is on display, allowing for perfect synchronization with the display's refresh rate (Vsync) and eliminating visual artifacts.

Performance and GUI Optimization: Fast, Light, and Responsive

In embedded GUI design, performance is measured in milliseconds and kilobytes. A UI that lags or consumes too much RAM is a critical failure. Sparklet is built from the ground up for GUI optimization, ensuring your application feels fast and leaves resources to spare.

Real-Time Rendering and Smooth Animations

Sparklet achieves its high frame rates (targeting 60 FPS) through several key techniques:

1. Layer-Based Rendering & Caching: Sparklet utilizes a layer-based (or "scene graph") architecture. Instead of redrawing the entire screen every frame, it only redraws the "dirty" elements—like a button that's been pressed or a data value that's changed. These individual layers are then composited by the Rockchip GPU. This saves an enormous amount of processing power, critical for smart display systems that need to run application logic concurrently.
2. Intelligent Resource Management: Fonts, images, and other UI assets are cached in memory. Sparklet's resource manager ensures that frequently used assets are instantly available, eliminating load-time stutters when navigating between different screens.

Low Memory Usage

Flash space and RAM are precious commodities. Sparklet is designed with a minimal footprint in mind.

1. Modular Architecture: You only link the features you need. If your HMI doesn't require complex 3D models, the 3D rendering module isn't included, saving valuable flash space.
2. Resource Compression: Sparklet supports highly efficient asset compression formats. Images can be stored in hardware-accelerated texture formats (like ETC2, which Mali GPUs understand natively) or other compressed formats, dramatically reducing both flash usage and the RAM needed to display them.

Real-World Smart Display Use Cases

The combination of Sparklet and Rockchip platforms is not theoretical; it's a solution for today's most demanding applications.

1. Automotive Clusters & Infotainment (IVI): A car's digital dashboard must be 100% reliable, boot instantly, and display critical data (like speed) with zero lag. At the same time, the central IVI system needs to provide fluid, consumer-grade map rendering and media controls. Sparklet's real-time performance on a Rockchip SoC delivers both safety-critical responsiveness and a rich user experience.
2. Smart Appliances & Industrial HMI: Modern ovens, refrigerators, and industrial control panels are increasingly adopting full-color touch displays. Sparklet provides a beautiful, modern control interface that is easy to use, while its low footprint keeps the Bill of Materials (BOM) cost down, a perfect match for Rockchip's cost-efficient processors.

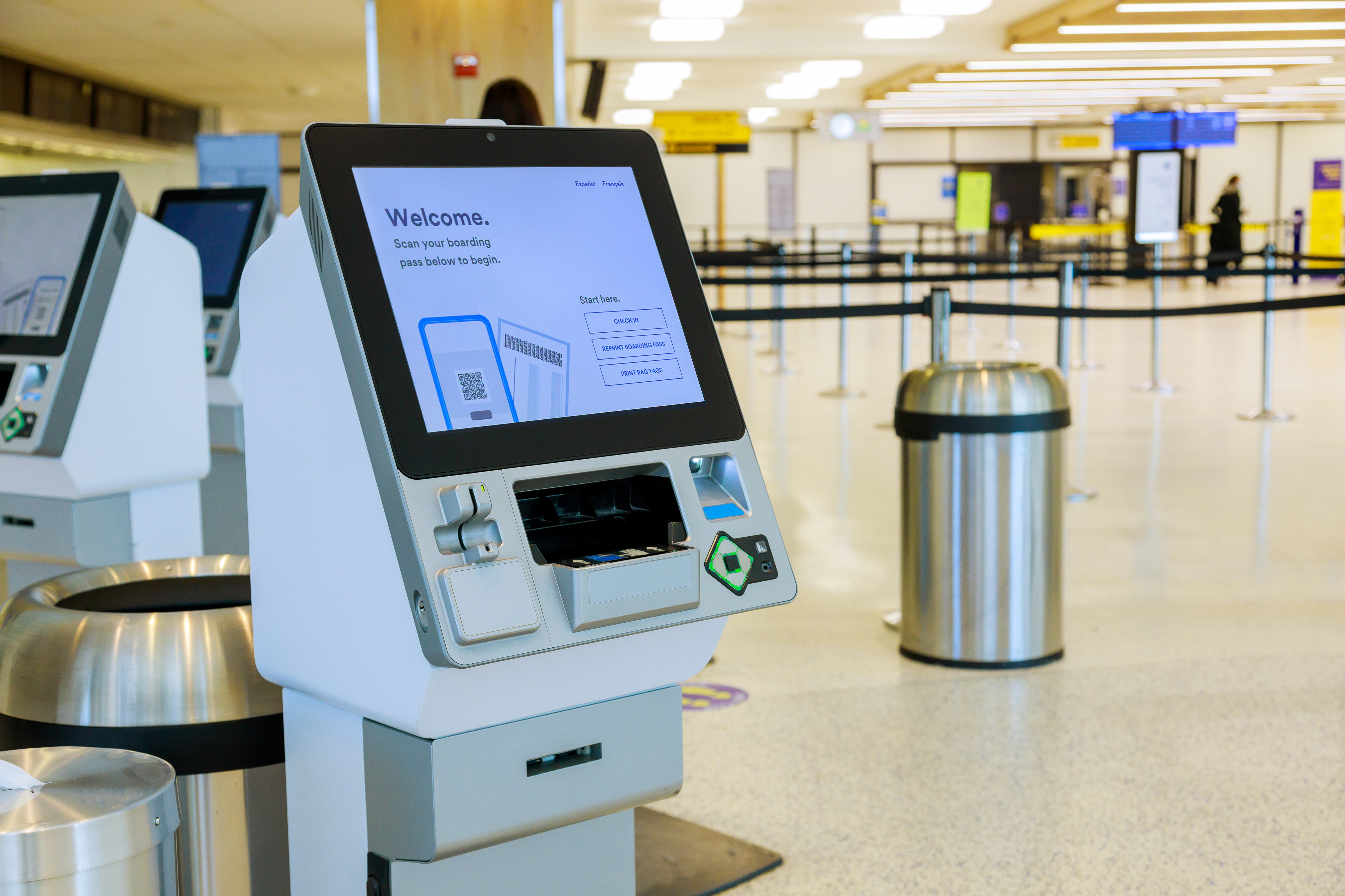

3. Digital Signage & Kiosks: These systems must be engaging and robust. Rockchip platforms are exceptional at video decoding. Sparklet can integrate smoothly with these video streams, allowing you to overlay interactive graphics, a live TTY feed, or promotional text on top of high-definition video, all rendered in a single, cohesive UI.

Streamlining Your Workflow: Developer-First Advantages

Sparklet isn't just powerful; it's designed to accelerate your development cycle.

1. Easy-to-Use APIs: Sparklet provides clean, well-documented C APIs that are intuitive for embedded developers. This low-level control, combined with high-level abstractions, means you spend less time fighting with graphics drivers and more time building your application's features.
2. Design-to-Code Workflow: Sparklet's tooling bridges the gap between UI designers and embedded engineers. Designers can work in their preferred visual tools, and Sparklet's workflow tools can import these designs, converting them into optimized code and assets.
3. Portability Across Rockchip Variants: A key advantage. The embedded GUI design you create for an entry-level Rockchip MPU can be re-compiled and scaled up for a high-performance variant with minimal code changes. This unified platform approach saves thousands of hours in R&D for a product family.
4. Simplified UI Updates: Sparklet's architecture simplifies updating the UI. You can push updates to the UI layer independently of the core application logic, making it easier to deploy visual refreshes or new features over-the-air (OTA).

The Strategic Choice: Why Sparklet + Rockchip Wins

For product engineers building next-generation devices, the choice is clear.

1. Exceptional Performance-to-Footprint Ratio: Sparklet delivers a premium UI experience without requiring an expensive, power-hungry SoC. It squeezes every last drop of performance from Rockchip's efficient hardware.
2. Broad Hardware Compatibility: Rockchip is known for its flexible display interfaces. Sparklet supports them all, including MIPI-DSI, HDMI, LVDS, and eDP, ensuring you can connect to virtually any panel your design requires.
3. Future-Ready Architecture: The future of smart display systems involves AI and connectivity. Rockchip platforms are increasingly shipping with powerful NPUs for on-device AI. Sparklet's lightweight nature leaves ample CPU and memory headroom for these next-gen features, allowing you to build AI-assisted UIs (like gesture recognition or predictive interfaces) on a single, cost-effective chip.

Start Building Your Next-Gen Smart Display

Don't let your HMI be an afterthought. Transform your Rockchip-powered system from a functional device into a smart, high-performance visual experience that wows your users. By leveraging Sparklet's efficient GUI optimization and deep hardware integration, you can finally deliver the fluid, beautiful interfaces your customer's demand.

Ready to see the difference? Explore Sparklet’s Supported MCUs and MPUs documentation to see how easy it is to get started with your Rockchip-based project today.
