In the world of user interface design, few elements are as timeless or as fundamentally important as the clock. From its humble beginnings as a simple time-keeping utility, the clock has evolved into a cornerstone of modern user interaction, especially in the embedded systems that power our daily lives. It’s no longer just about displaying hours and minutes; it’s about scheduling, timestamping, setting alarms, and providing a visual heartbeat for a device.
However, for embedded UI developers, implementing a clock that is both visually appealing and functionally robust presents a unique set of challenges. On one hand, the demand for rich, responsive, and customizable interfaces has never been higher. On the other, we are often constrained by the tight memory and processing budgets of microcontrollers (MCUs) and microprocessors (MPUs). How do we bridge this gap?
At Embien, we've tackled this challenge head-on with Sparklet, our embedded graphics library. Today, I want to delve into one of its most versatile GUI widgets: the Sparklet Clock Widget. This component is a testament to our philosophy that you shouldn't have to compromise on user experience, even on the most resource-limited systems.
The Modern Clock: More Than Just a Timepiece
Before we explore Sparklet’s solution, it's crucial to appreciate the expanded role of the clock in today's embedded products. The clock UI is a primary point of interaction across a vast range of devices:

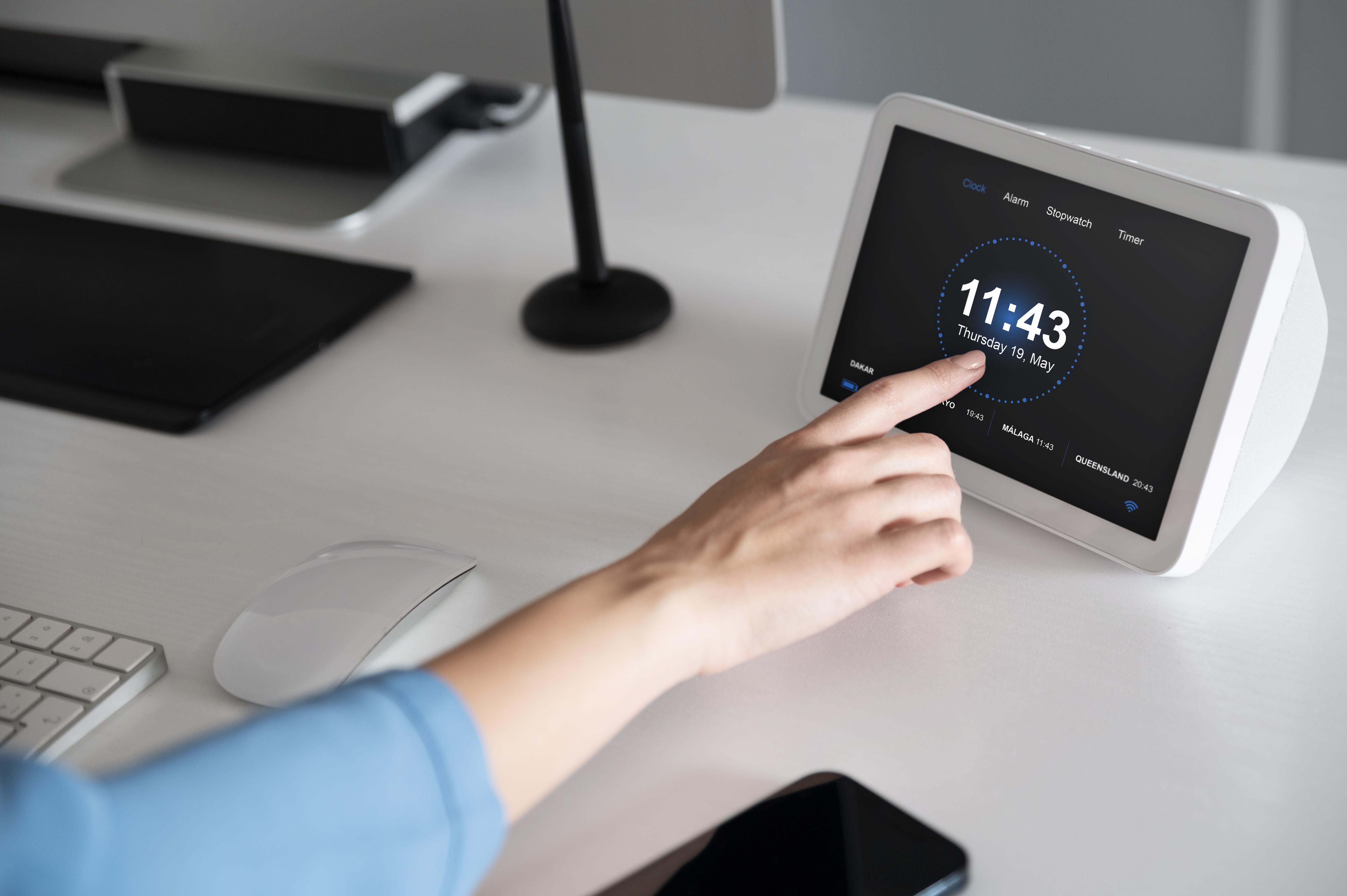

- Consumer Electronics: On a smartwatch, it’s the home screen—a launchpad for notifications and apps. On a modern microwave or oven, it’s how you set cooking timers with precision. For smart home hubs, it’s the central scheduler for lighting, climate control, and security systems, often serving as the default ambient display.
- Industrial HMI: In a factory setting, a clock UI is essential for scheduling automated processes, logging critical events with accurate timestamps, and setting maintenance reminders. The clarity and reliability of the clock are paramount for operational efficiency and safety, providing operators with an immediate and unambiguous frame of reference.
- Medical Devices: The stakes are even higher in the medical field. An infusion pump relies on precise timekeeping to deliver medication, while patient monitoring systems use the clock to track vitals and generate time-sensitive alerts. Here, the clock is a critical component of patient care, where a single second can be meaningful.
- Automotive Dashboards: In vehicles, clocks are integrated into infotainment systems for navigation ETAs, trip duration tracking, and scheduling vehicle pre-conditioning (like warming up the car on a cold morning). It's a key piece of data that grounds the driver's experience.
In each of these use cases, the clock serves a dual purpose: it passively displays time while also providing an active interface for users to input and edit time-based information. This duality demands a widget that is both beautiful and highly functional.
A Spectrum of Styles: Analog and Digital Clocks
User preferences and application requirements vary, which is why a flexible UI library must support the two primary paradigms of time display: analog and digital.
The Timeless Appeal of the Analog Clock
The Dial Clock offers an intuitive, at-a-glance understanding of time. The spatial relationship of the hands on the dial allows users to quickly visualize time spans—how much time is left until the next meeting or how long the machine has been running. This classic design can be broken down into key components:
- The Dial: The face of the clock, which can be simple and clean or ornate and detailed.
- The Hands: Typically a two-hand (hour, minute) or three-hand (with seconds) configuration. Their shape, size, and color are key stylistic elements.
- The Ticks: Markings for hours and minutes that provide reference points.
The analog clock often evokes a sense of quality and tradition, making it a popular choice for premium products.
The Precision of the Digital Clock
The Digital Clock provides unambiguous, precise information. When a user needs to know the exact time down to the second, a digital display is unparalleled. It excels in applications where accuracy is critical, such as event logging or coordinating timed operations. Variations often include 12-hour vs. 24-hour formats and the optional display of seconds, the date, or the day of the week.
Introducing the Sparklet Clock Widget: Precision Meets Performance
Understanding these diverse requirements, we engineered the Sparklet Clock Widget to be one of the most powerful and customizable embedded UI components in our library. It’s not just a single widget, but a flexible framework for creating virtually any clock UI you can imagine, whether analog, digital, or a hybrid of both.
Unmatched Customization for a Unique Brand Identity
This is where Sparklet truly shines. The Clock widget was designed to give developers granular control over every visual element, allowing for deep brand integration and a polished user experience.
For an Analog Clock:
- Custom Dials: Forget static, pre-rendered images. With Sparklet, you can use custom background images for the dial, apply solid color fills, or even use gradients for a more dynamic look.
- Fully Stylable Hands: You have complete control over the hands. Change their shape, length, thickness, color, and pivot point. This allows you to design everything from classic, elegant clock hands for a luxury device to bold, luminous indicators for a sports watch.
- Configurable Ticks and Numerals: Adjust the appearance of major and minor ticks. You can even replace the standard numerals with custom icons or text, opening up creative possibilities for your interface.
- Center Knob Styling: The central pivot can be styled or hidden entirely to match your aesthetic.
For a Digital Clock:
- Advanced Typography: Go beyond system fonts. The widget supports custom fonts, allowing you to maintain brand consistency. You can also control the font size, color, and style for each part of the display (hours, minutes, seconds, AM/PM).
- Flexible Formatting: Easily switch between 12-hour and 24-hour formats, toggle the visibility of the date or seconds, and customize the separator characters.
- Low Memory Footprint: Sparklet is built from the ground up for embedded systems. The Clock widget is exceptionally light on both RAM and Flash, consuming minimal resources. We avoid heavy assets and rely on efficient rendering techniques, making it perfect for MCUs where every kilobyte counts. For instance, instead of storing multiple full-screen images for different clock faces, you store one set of small hand images and a few background colors, reconfiguring the same widget to create endless variations with minimal storage overhead.
- Intelligent, Minimal Rendering: We know that unnecessary screen redraws are a major drain on CPU cycles and power. The Sparklet Clock Widget is smart about what it updates. In a typical analog clock, only the second hand moves every second. Our rendering engine isolates this change and redraws only the tiny portion of the screen that is affected, leaving the rest of the UI untouched. This dramatically reduces CPU load and power consumption, which is critical for battery-powered devices. We also use fixed-point arithmetic for calculating hand positions, avoiding the performance penalty of floating-point operations on many MCUs.
- Hardware Acceleration Ready: While Sparklet is highly performant in software, it can also seamlessly leverage 2D graphics accelerators (if available on your hardware) to offload rendering tasks, freeing up the CPU for other critical application logic.
This high degree of customization means you aren't just building one clock; you're building a platform for countless clock faces. A developer could easily implement a settings screen where the user can scroll through different clock styles—much like a carousel—all powered by a single, efficient widget instance that is simply reconfigured on the fly.
Beyond Display: Interactive Time Setting
A clock UI is incomplete if it only displays time. Users need to be able to set it. The Sparklet Clock Widget is designed to integrate seamlessly with other input mechanisms. By capturing user events, you can easily link the clock to physical buttons, touch gestures, or rotary encoders to create an intuitive time-setting interface. For example, you can configure the widget so that a tap on the 'hour' section of a digital clock highlights it, allowing the user to adjust the value with an up/down button or a scroll gesture. This event-driven architecture makes building interactive time editors straightforward and clean.
Effortless Theming
Modern UIs often require different visual themes, such as a 'day mode' and a 'night mode'. Sparklet’s integrated theme engine makes this incredibly simple. You can define color palettes, font styles, and other properties at a global level. The Clock widget, like all our GUI widgets, automatically subscribes to the theme. A single API call to switch the theme will instantly and seamlessly update the appearance of every clock in your application, without any need for manual redrawing or complex logic.
Optimized for Resource-Limited Embedded Systems
Stunning visuals and deep customization are meaningless if they can't perform on your target hardware. This is where our obsession with efficiency pays off.
Streamlining Development with a Visual Workflow
For embedded UI developers, time-to-market is everything. The Sparklet Clock Widget isn’t just a powerful API; it’s a fully integrated component within our visual GUI designer, Flint. This means you can design, configure, and test your clock UI without writing a single line of code. Drag and drop the clock widget onto your canvas, and use an intuitive properties panel to customize every aspect—from the image used for the clock hands to the color of the digital font. This visual-first approach allows for rapid prototyping and iteration, enabling you to perfect the user experience in a fraction of the time it would take with a code-only approach.
Conclusion: It’s Time to Elevate Your Embedded UI
The clock is no longer a simple feature; it is a central element of the user experience. It needs to be accurate, functional, and visually compelling. With the Sparklet Clock Widget, we provide embedded developers with the tool to achieve all three without compromising on performance or overrunning their resource budget.
By combining deep customization with an incredibly efficient rendering engine and a seamless visual design workflow, we empower you to build the exact clock UI your product deserves. I encourage you to stop thinking of the clock as a static display and start seeing it as an opportunity to delight your users.
Ready to see it in action? I invite you to explore the Sparklet Clock Widget documentation on our website and discover how you can bring your next embedded UI to life.
https://www.embien.com/documentation/flint-ui-designer/clock.html
