In today’s connected world, the humble embedded interface has evolved. Users now expect the same fluid, visually rich, and responsive graphical user interfaces (GUIs) they experience on their smartphones, whether they are in their car, adjusting a thermostat, or operating industrial machinery. For embedded developers working with Renesas MCUs and MPUs, delivering this high-end user experience (UX) while balancing performance, memory, and cost is a significant challenge.
This is where Sparklet, a lightweight graphics engine and embedded UI framework, fundamentally changes the game. Sparklet is a high-performance embedded graphics library meticulously engineered to help developers create stunning, responsive GUIs with minimal effort, even on resource-limited systems.

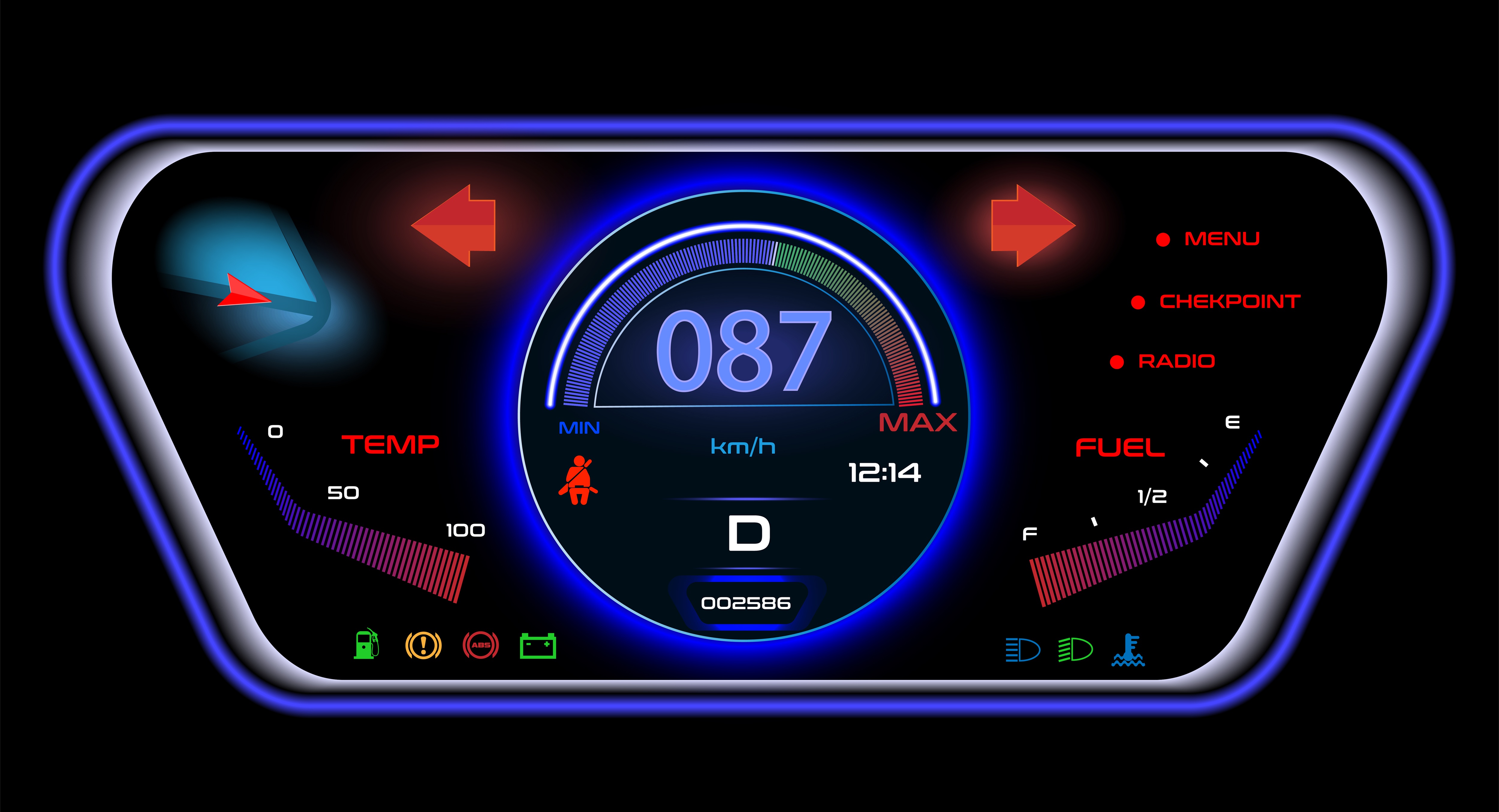

GUI performance and efficiency are not just "nice-to-haves" in Renesas-based systems; they are critical. In an automotive digital cluster built on an RH850, for example, a lagging needle or a slow-to-respond warning icon is unacceptable. In an industrial HMI on an RZ MPU, real-time data visualization is essential for operational safety. Sparklet accelerates embedded GUI design by providing an optimized rendering pipeline and a powerful toolset that leverages the full potential of Renesas's diverse hardware, enabling teams to build next-generation interfaces faster and more efficiently.
Supported Renesas Platforms: Scalability from MCU to MPU
One of Sparklet's core strengths is its scalability across the wide spectrum of Renesas's powerful microcontroller (MCU) and microprocessor (MPU) families. This allows development teams to maintain a consistent design language and reuse significant portions of their codebase, whether they are targeting a low-power MCU or a high-performance MPU.
Sparklet provides robust support for key Renesas platforms, including:
- Renesas RA Series (MCUs): The RA family, based on the Arm® Cortex®-M core, is a popular choice for a vast range of IoT, industrial, and consumer applications. Sparklet shines on platforms like the Renesas RA6M3 and the new Renesas RA8D1, which features a D/AVE2D graphics accelerator. Sparklet integrates seamlessly with these hardware accelerators, offloading complex rendering tasks from the CPU to deliver smooth animations and rich 2D graphics with minimal CPU overhead.
Use Cases: Smart appliances (thermostats, washing machine displays), smart home control panels, and medical HMIs (patient monitors, infusion pumps).
- Renesas RH850 Series (MCUs): Designed for the demanding automotive market, the RH850 family offers a powerful combination of real-time performance, functional safety, and security. Sparklet is optimized for this architecture, providing the reliability and real-time rendering capabilities required for digital instrument clusters, head-up displays (HUDs), and driver information systems. Its small footprint is crucial in these complex, multi-domain ECUs.
Use Cases: Automotive digital clusters, infotainment system elements, and advanced driver-assistance systems (ADAS) visualizations.
- Renesas RZ Series (MPUs): For applications demanding high-resolution displays, complex 3D graphics, and rich multimedia, the RZ family of MPUs is the go-to solution. Sparklet’s architecture scales perfectly to these high-performance processors, interfacing with advanced 2D/3D graphics hardware to render sophisticated UIs. This allows developers to build complex, feature-rich industrial panels or premium automotive infotainment systems without compromising on performance.
Use Cases: High-end industrial operator panels (HMIs), building automation systems, and advanced medical imaging displays.
Key Advantages of Using Sparklet on Renesas
Integrating Sparklet into a Renesas-based design workflow unlocks several immediate and long-term advantages that directly address the core challenges of embedded GUI development.
- Small Footprint and Low Memory Usage: Sparklet is engineered from the ground up for minimal RAM and ROM consumption. This "maximized code efficiency" is a critical differentiator. On a resource-constrained Renesas RA MCU, this small footprint means developers don't have to sacrifice UI features or system responsiveness. It allows more memory for the core application logic and can even enable the selection of a more cost-effective MCU, directly impacting the final bill of materials (BOM).
- Optimized Rendering Pipeline for 2D/3D Graphics: Sparklet isn't just a widget library; it's a complete rendering engine. It is designed to "leverage existing graphic accelerators" or, when one isn't available, "utilize optimized software rendering." This dual approach is perfect for the Renesas portfolio. On an RA8D1 or RZ MPU, Sparklet offloads rendering to the dedicated graphics hardware, freeing the main CPU core for critical real-time tasks. On a more basic RA or RH850 variant, its highly optimized software renderer still delivers impressive performance.
- Seamless Integration with Renesas Ecosystem: A library is only as good as its integration. Sparklet provides a "comprehensive IDE for HMI design, testing, and optimization." This means developers can design, test, and validate their UIs directly on their development PC, dramatically shortening iteration cycles. Furthermore, Sparklet is designed to integrate smoothly with Renesas's SDKs and hardware abstraction layers (HALs), making it simple to get the GUI up and running on a target evaluation kit, like the Renesas RA6M3G or RH850 EVK.
- Hardware Acceleration and Fast Boot Performance: In many embedded systems, particularly automotive and medical, "boot time" is a critical safety and usability metric. A driver cannot wait 10 seconds for their speedometer to appear. Sparklet is architected for fast initialization, enabling "instant-on" UIs that are ready when the user needs them. By fully utilizing the hardware acceleration features of Renesas MCUs and MPUs, Sparklet ensures that the system is responsive from the moment it's powered on.
Performance Optimization and Customization
Out-of-the-box performance is just the beginning. Sparklet provides deep customization hooks that allow engineers to fine-tune every aspect of the GUI's performance and appearance.
This embedded UI framework gives developers granular control over resource management. You can optimize CPU and GPU utilization by strategically managing rendering layers, controlling animation frame rates, and implementing partial screen updates. Instead of redrawing the entire screen for a single moving needle, Sparklet can isolate and redraw only the smallest rectangular area necessary, saving millions of clock cycles.
This philosophy extends to custom widget development. While Sparklet provides a rich set of standard widgets, developers are not locked in. Need a custom, photorealistic automotive gauge with a complex ticking animation and dynamic warning indicators? Sparklet’s architecture allows for the creation of new, highly optimized components. This can involve:
- Custom Widget Rendering: Building a proprietary gauge, chart, or list component that directly manipulates rendering primitives for maximum performance.
- Advanced Animation Control: Creating custom animation curves and physics-based movements that go beyond simple linear fades and slides, adding a premium feel to the UI.
- Targeted Memory Management: Developers can control memory pools and object allocation strategies, ensuring the GUI operates predictably within its assigned memory budget, which is essential for functionally safe systems.
Development Efficiency and Flexibility
The pressure to "do more with less" is constant. Sparklet is designed to be a force multiplier for development teams. Its core principle is a "flexible and independent design."
This starts with its portable architecture. A GUI design created with Sparklet is not tied to a specific resolution, color depth, or screen orientation. This "multi-resolution support" is managed within a "single GUI project." A team can design a UI and, with minimal effort, deploy it on a 4.3-inch 480x272 display for a mid-range smart appliance and on a 10.1-inch 1280x800 display for the premium model.
This portability extends across the entire Renesas MCUs and MPUs lineup. Developers can prototype a new industrial HMI on a Renesas RA evaluation kit and then scale that exact design up to a powerful RZ MPU for the final product, all while reusing the same UI assets, logic, and code.
Furthermore, Sparklet acknowledges that no embedded system is an island. Its "versatile OS compatibility" is a major asset. Developers can deploy Sparklet on bare-metal (no OS) for the fastest boot and smallest footprint, or "integrate seamlessly with popular RTOS platforms like FreeRTOS." This flexibility allows the GUI to coexist with other real-time tasks, with the RTOS managing task priorities to ensure that, for example, a motor control loop is never interrupted by a screen-refresh-blocking call.
Use Cases and Industry-Leading Examples
The combination of Sparklet and Renesas hardware is a perfect fit for a wide range of demanding industries:
- Automotive: The RH850 series, combined with Sparklet's real-time rendering, is ideal for creating digital clusters, driver information systems, and infotainment UIs that are fluid, reliable, and functionally safe.
- Industrial: The RZ series' MPU power, leveraged by Sparklet, can drive high-resolution operator panels (HMIs) and control interfaces that visualize complex factory data, SCADA systems, and real-time process monitoring.
- Consumer & Smart Home: The cost-effectiveness and low power of the Renesas RA series, paired with Sparklet's small footprint, are perfect for smart home displays, high-end thermostats, wearables, and smart kitchen appliances.
- Medical: The reliability of Renesas hardware and the optimized, clear rendering of Sparklet create a trustworthy platform for medical devices like portable diagnostic tools, patient monitors, and infusion pump interfaces where clarity and responsiveness are non-negotiable.
Why Choose Sparklet for Renesas-based Designs?
For system architects and engineers building on the Renesas platform, the choice of a GUI framework is a long-term strategic decision. Sparklet stands out as the future-ready choice.
It is not just about the speed of the final UI; it's about the speed of development. It’s not just about the scalability from a low-cost RA to a high-performance RZ; it’s about the scalability of your team and your codebase. With "royalty-free deployment" and no hidden runtime fees, Sparklet offers a predictable and cost-effective commercial model.
Ultimately, Sparklet is the high-performance GUI engine that unlocks the full potential of Renesas MCUs and MPUs. It enhances the end-user experience through beautiful, fluid graphics while simultaneously boosting system efficiency and accelerating your time to market.
Conclusion: Your Next-Generation GUI Starts Here
Delivering a modern, responsive, and visually stunning GUI on an embedded system is no longer an insurmountable challenge. By combining the powerful and scalable Renesas RA, RH850, and RZ platforms with the Sparklet graphics library, development teams can finally bridge the gap between embedded constraints and user expectations.
Sparklet provides the optimized tools, flexible architecture, and high-performance rendering engine needed to build the next generation of embedded GUIs, faster and with less risk.
Ready to see the difference for yourself? Explore Sparklet’s documentation to see detailed integration guides for Renesas platforms or request a demo application for your specific Renesas evaluation kit today.
